  • Autoclave capacity :4~60 m3

  • Wood Treatment Capacity :1~40 m3

  • Design Pressure :0.8~1.4MPa

  • Design Temperature :0~180℃

Application : Paper Processing Industry ,Chemical Industry Boiler ,Pharmaceuticals Industry ,Food & Beverage Industry Boiler

Email : info@xinliboiler.com

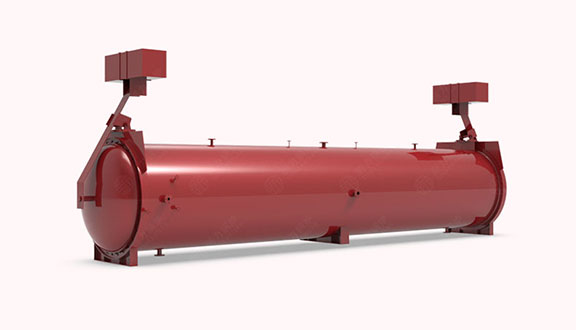

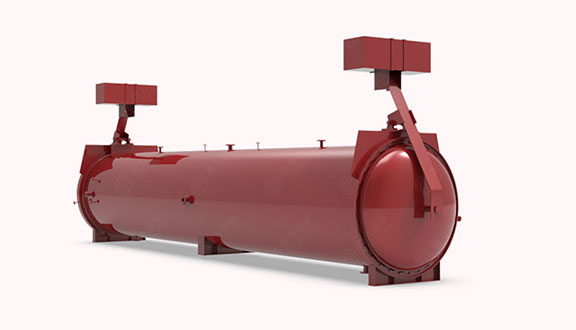

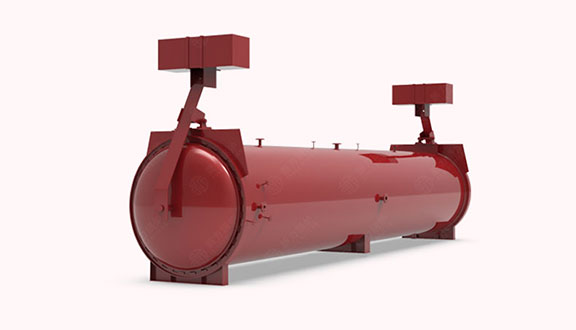

Autoclave for Wood Preservation

Industrial autoclave is large pressure vessel for steam curing, has excellent thermal insulating quality, and it is easy installed. The autoclave is a horizontal cylinder device and it is widely used for wood preservation or other wood processing, such as fire retardant, mothproof, dyeing, coking, and degrease, etc. It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc. Based on customers’ requirement, the autoclave door could designed as manual and automatic operation.

Except wood preservation, the autoclave could also maintenance and steaming building materials, such as AAC plant, lime-sand brick, fly-ash brick, new light wall material, concrete tubular pile. When curing the aerated concrete, there is hydrothermal reaction (CaO-SiO2-H2O) happened in autoclave. Moreover, it could used for the products steaming in chemical industry, medicine, rubber, wood corrosion prevention, gypsum, glass, thermal insulation materials, textile, war industry and other area. XinLi boiler could design and manufacture various forms of autoclave according to customers’ requirements.

Performance Advantage

Technical Parameter

ModelAutoclave Capacity(m3)Wood Treatment Capacity(m3)Working Pressure(Mpa)
DN1200×4000mm4.631.0~1.4
DN1200×8000mm9.15.21.0~1.4
DN1500×6000mm1161.0~1.4
DN1500×8000mm148.51.0~1.4
DN1700×8000mm18.3111.0~1.4
DN1800×8000mm20.5121.0~1.4
DN2000×18000mm55321.0~1.4
Note: Parameter is for reference only, if any changes should follow the actual drawing
