Rated Evaporation Capacity :0.2~2t/h
Working Pressure :0.4~0.7Mpa
Thermal Efficiency :92%~94%
Avaliable Fuel :Diesel,Natural Gas, LPG, etc
Application : Food & Beverage Industry Boiler ,Brewery Industry Boiler ,Pharmaceuticals Industry ,Textile Industry Boiler ,Central Heating Boiler ,Chemical Industry Boiler
Email : info@xinliboiler.com

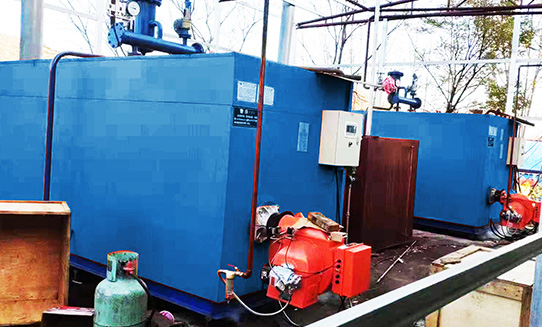

Oil/gas steam generator is full Automatic operating, has the characterietic of high efficiency and energy saving, environmental protection, steam continuous and stable output, high steam purity, complete set delivery, convenient and simple. The steam generator output saturated steam fast, inside steam storage room large & steam enough, matched import burner, no pollution, low- emission.

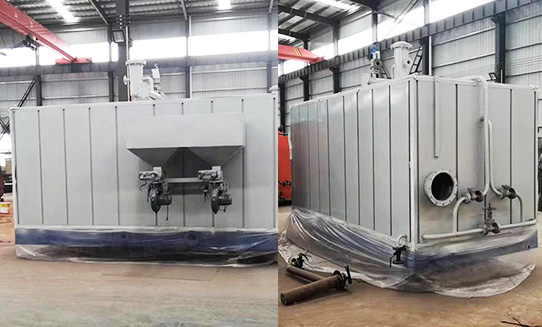

Skid-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.
After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.
Automatically control combustion ,steam pressure and water level , ensure safe and economical operation.
The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.
The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.
| Model | FTSG0.2-0.4-YQ | FTSG0.3-0.7-YQ | FTSG0.5-0.7-YQ | FTSG0.7-0.7-YQ | FTSG01.5-0.7-YQ |
| Rated Steam Capacity (t/h) | 0.2 | 0.3 | 0.5 | 0.7 | 1.5 |
| Rated Steam Pressure (Mpa) | 0.4 | 0.7 | 0.7 | 0.7 | 0.7 |
| Rated Steam Temperature (℃) | 150 | 170 | 170 | 170 | 170 |
| Test Efficiency (%) | 92-94 | 92-94 | 92-94 | 92-94 | 92-94 |
| Electric Consumption (KW) | 1 | 1 | 1.25 | 3.5 | 4.5 |
| Natural Gas Consumption (Nm3/h) | 15-20 | 18-28 | 25-35 | 31-58 | 80-105 |
| Transportation Dimension (L*W*H) mm | 1500*1250*2100 | 2000*1900*2500 | 2250*2550*2800 | 2400*2600*3000 | 2400*2620*3000 |
| Voltage | 380V 50HZ | ||||
| Regulation Model | Automatic | ||||
