Rated Thermal Power :240KW ~ 14000KW
Working Pressure :0.8MPa
Thermal Efficiency :> 80%
Avaliable Fuel :LPG, NG, Diesel, Oil
Application : Food & Beverage Industry Boiler ,Brewery Industry Boiler ,Chemical Industry Boiler ,Paper Processing Industry
Email : info@xinliboiler.com

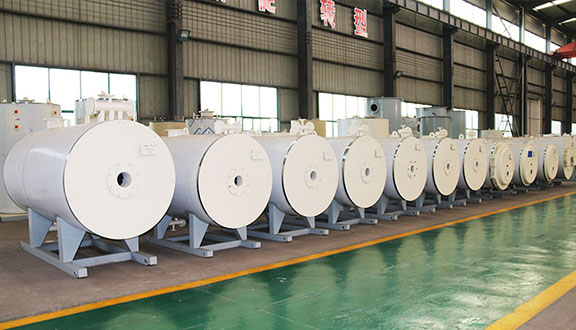

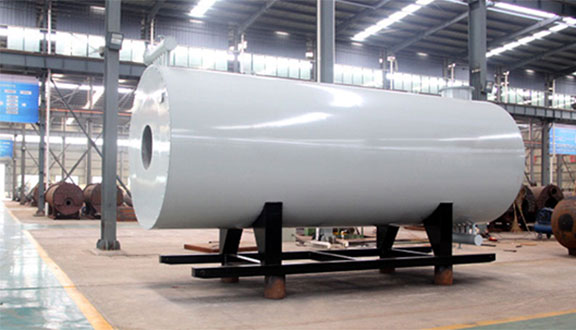

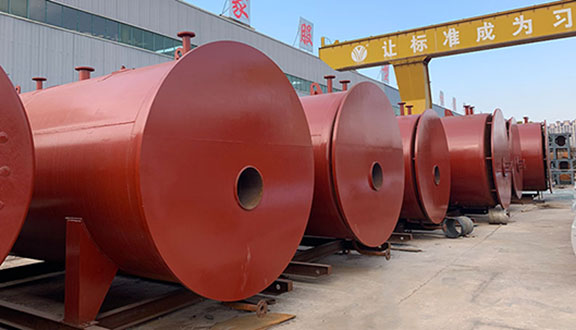

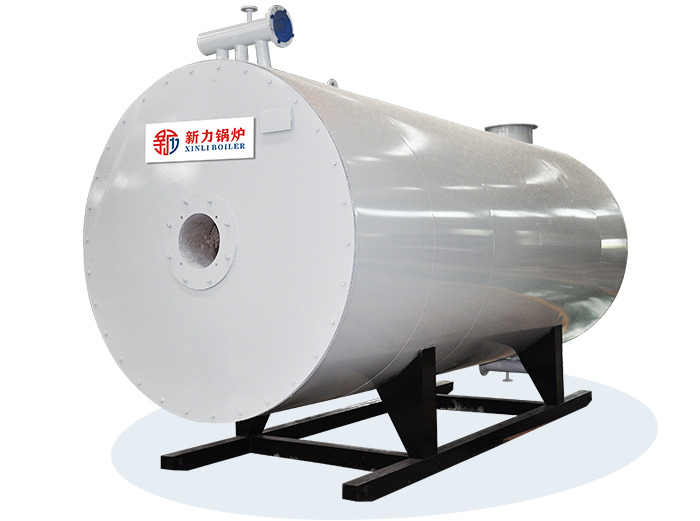

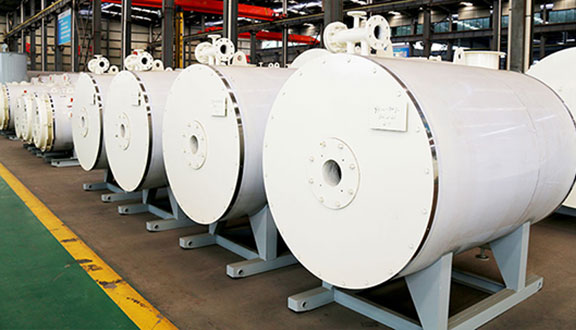

YQW series gas fired thermal oil boiler is a kind of new type heating equipment, the fuel could be oil, gas, or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.
Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Xinli thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.
The combustion chamber is consisted of large diameter coil, large combustion space, the fuel could burn sufficiently, high combustion efficiency.
The spiral coal is made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.
The heating surface is reasonably arranged, large heating area, good heat transfer, high thermal efficiency and stable output.
Equipped with explosion proof equipment at the back of boiler, prevent deflagration in furnace, discharge high energy, to ensure the boiler operate safety and efficiently.
The furnace cover is integral structure, multi-stage labyrinth seal, use special sealing process and material, has good compressibility, flue gas will not leakage.
The output oil temperature could be controlled precised, has the protection function of over pressure and over temperature. The electrical apparatus element of controller use the brand of Semines/Delixi, safe and reliable.
| Model | Rated Thermal Power (KW) | Working pressure (MPa) | Medium Outlet Temperature (℃) | Thermal Efficiency (%) | Largest Part Size for Transportation L×W× H (mm） | Largest Part Weight for Transportation (t) |
| YY(Q)W-120Y(Q) | 120 | 0.8 | < 350 | 75 | 1600×1020×1520 | 1.5 |
| YY(Q)W-1000Y(Q) | 1000 | 0.8 | < 350 | 85 | 3300×1670×2486 | 5 |
| YY(Q)W-2400Y(Q) | 2400 | 0.8 | < 350 | 85 | 5080×2200×3180 | 9.8 |
| YY(Q)W-3000Y(Q) | 3000 | 0.8 | < 350 | 85 | 5983×2420×3404 | 15.5 |
| YY(Q)W-4700Y(Q) | 4700 | 0.8 | < 350 | 85 | 7285×2570×3760 | 21.5 |
| YY(Q)W-6000 Y(Q) | 6000 | 0.8 | < 350 | 85 | 7800×3050×3800 | 25 |
| YY(Q)W-7000 Y(Q) | 7000 | 0.8 | < 350 | 85 | 8200×3050×3800 | 27.5 |
| YY(Q)W-10000 Y(Q) | 10000 | 0.8 | < 350 | 85 | 10000×3500×4000 | 32 |
| Note: Parameter is for reference only, if any changes should follow the technical drawing. | ||||||
