Rated Evaporation Capacity :0.5~25t/h
Working Pressure :≤2.5MPa
Thermal Efficiency :90%~98%
Avaliable Fuel :LPG, CNG, NG
Application : Brewery Industry Boiler ,Paper Processing Industry ,Food & Beverage Industry Boiler ,Chemical Industry Boiler
Email : info@xinliboiler.com

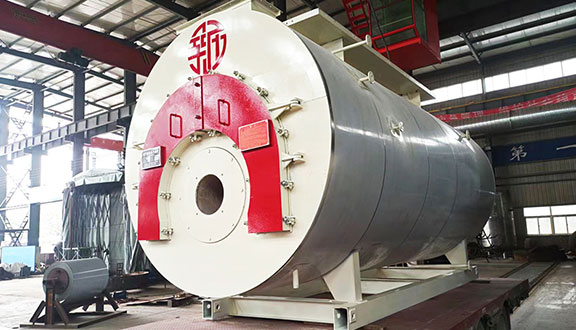

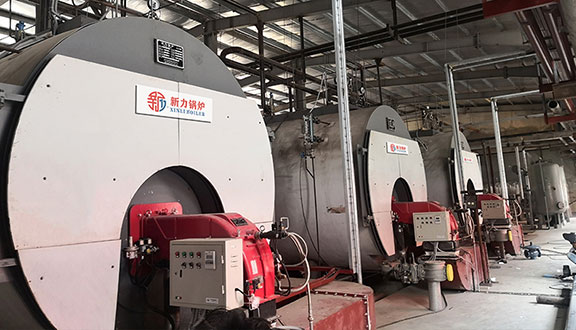

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.
This gas oil fire tube boiler is widely used for industry production and processing, such as textile mill, medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, moreover, it could be used for central heating in enterprise, hotel, hospital, civil architecture, etc.
Equipped with high quality and reliable international brand burner, the fuel could burn sufficiently, high combustion efficiency, low harmful gas emission and noiseless operation.

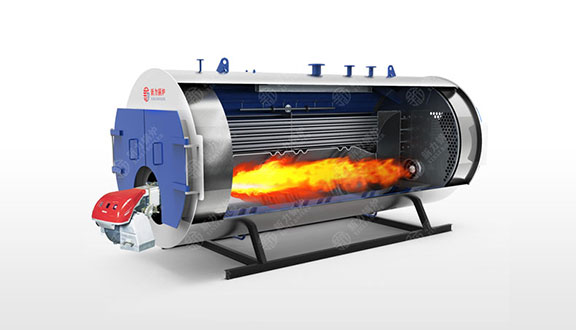

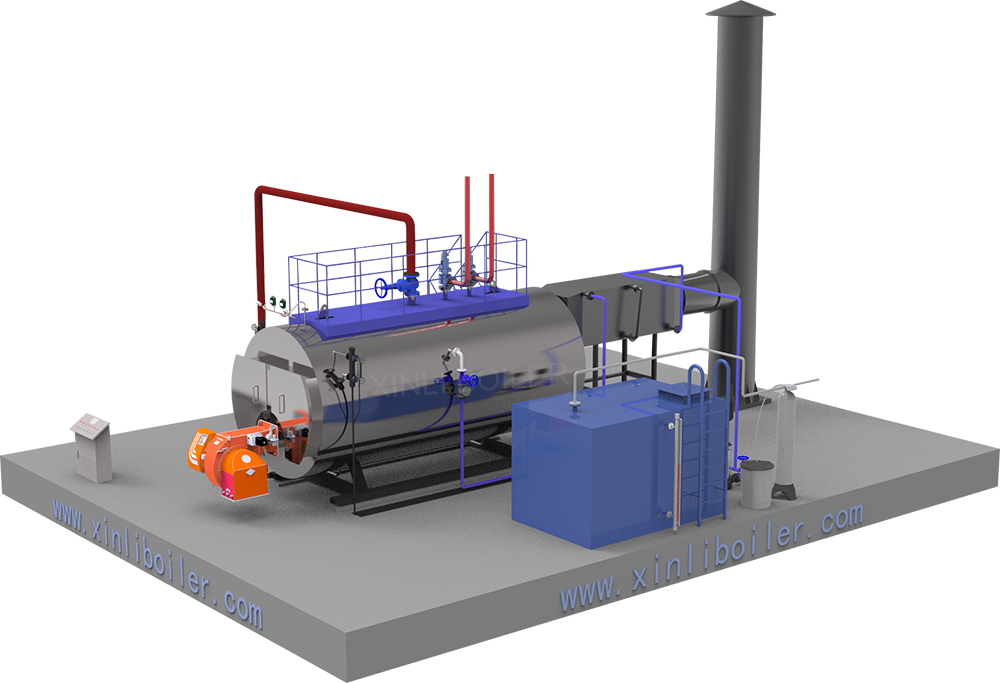

Adopts horizontal type three pass structure and large diameter corrugated furnace. Large combustion space, the fuel could burn sufficiently. The large radiant heating surface to ensure the high thermal efficiency.
The smoke box is double door design, open conveniently. It uses multistage labyrinth seal technology, the seal material is special, has good compressibility, no smoke leakage.
Equipped with explosion proof equipment at the back of boiler, prevent deflagration in furnace, discharge high energy, and automatic reset as well, to ensure the boiler operate safety and efficiently.
The boiler shell use aluminium silicate board for heat preservation, the thickness of board is 8cm, high thermal shielding efficiency but low heat loss, to increase the boiler thermal efficiency.
has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, electric leakage, and phrase-lacking or overloading of motor, etc.，to ensure boiler safe operation.
Equipped with economizer, make full use of the heat of flue gas, decrease the exhaust smoke temperature, the thermal efficiency could be increased to as high as 98%.
| Model | Rated Evaporation Capacity (t/h) | Rated Pressure (Mpa) | Thermal Efficiency (％) | Fuel Consumption | Overall Dimension of biggest part for transfortation (m) | Weight of biggest part for transporation (t) | |
| Light Oil (Kg/h) | NG (Nm³/h) | ||||||
| WNS1-0.7/1.0-Y(Q) | 1 | 0.7/1.0 | >90 | 66.5 | 75 | 3.6×2.0×2.0 | 4 |
| WNS2-1.0/1.25-Y(Q) | 2 | 1.0/1.25 | >90.2 | 133 | 150 | 4.8×2.5×2.46 | 8 |
| WNS4-1.0/1.25-Y(Q) | 4 | 1.0/1.25 | >91 | 266 | 300 | 5.8×2.85×2.8 | 13 |
| WNS6-1.0/1.25-Y(Q) | 6 | 1.25/1.6 | >91.5 | 399 | 450 | 7.25×3.1×3.15 | 19 |
| WN8-1.0/1.25-Y(Q) | 8 | 1.25/1.6 | >91.6 | 532 | 600 | 7.45×3.26×3.2 | 22.6 |
| WNS15-1.0/1.25-Y(Q) | 15 | 1.25/1.6 | >91.8 | 997 | 1125 | 8.7×3.7×3.5 | 34 |
| WNS20-1.0/1.25-Y(Q) | 20 | 1.25/1.6 | >92 | 1204 | 1418 | 10×3.6×4.0 | 45 |
| Note: Parameter is for reference only, if any changes should follow the actual drawing | |||||||
