Autoclave for AAC Plant-Autoclave-Kaifeng Xinli Boiler Equipment Co., Ltd.

Design Pressure :1.0-3.8 Mpa
Inner Diameter :1.5~3m
Working Temperature :187/198°C
Working Medium :Saturated Steam

Application : Chemical Industry Boiler ,Food & Beverage Industry Boiler ,Pharmaceuticals Industry ,Paper Processing Industry

Email : info@xinliboiler.com

Chat Online Inquiry

Home>Products>Autoclave

Introduction
Detail Demonstration
Performance-Advantage
Technical-Parameter

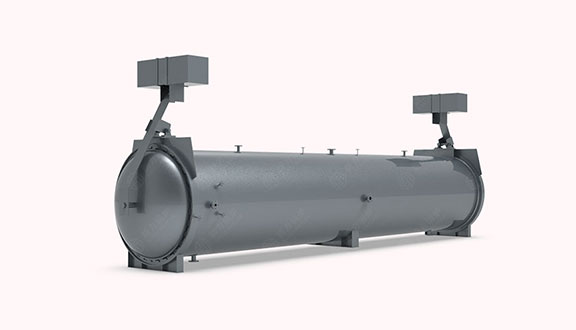

Autoclave for AAC Plant

Autoclave for AAC plant is large pressure vessel for steam curing, has excellent thermal insulating quality, and it supporting the use of steam boilers. The autoclave is a horizontal cylinder device, when curing the aerated concrete, there is hydrothermal reaction (CaO-SiO2-H2O) happened in autoclave. It has the advantages of wide applicability, good treat efficiency, large capacity, reasonable layout, and safety operation, etc. XinLi Boiler could design and manufacture various forms of autoclave according to customers’ requirements.

Except AAC plant, the autoclave could also be used for wood preservation, maintenance and steaming of lime-sand brick, fly-ash brick, new light wall material, concrete tubular pile and other building products, moreover, it can used for the products steaming in chemical industry, medicine, rubber, wood corrosion prevention, gypsum, glass, thermal insulation materials, textile, war industry and other area.

Performance Advantage

1. High quality materials
The autoclave cover uses monoblock Q345R steel plate for compression moulding, and the flange of autoclave cover and body use Q345R steel plate for integral forgoing, to ensure the high quality.
2. Advanced processing technology
Double-side automatic submerged arc welding are used for the weld joint of autoclave cover head and flange, and then heat treatment and strict nondestructive testing are processed for all weld joint of pressure parts, eliminate forging stress and welding
3. Special and convenient structure

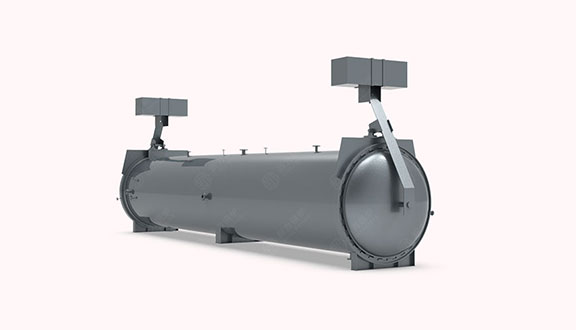

Side open type using the rotating arm type door - opening structure. Flexible rotation, low post operation, simple and convenient opening. Upper open type door using the lever type door-opening structure, lower leverage connect with kettle door, the
4. Safe operation
Equipped with PLC control cabinet and sophisticated safe interlock protection device, utmost avoid the potential wrong operation, to ensure the safe operation.

Technical Parameter

Model	Diameter（m）	Efficient Length（m）	Design Pressure（Mpa）	Design Temperature(°C)	Working Medium	Length×Width×Height (mm)	Weight(ton)
FGZCS1.0-1.65×21	1.65	21	1.0~1.4	187	Saturation steam	22650×2619×2695	21.5
FGZCS1.3-2×21	2	21	1.0~1.4	198		23300×2980×3340	24.7
FGZCS1.3-2×27	2	27	1.0~1.4	198		2930×2980×3340	30.5
FGZCS1.3-2×31	2	31	1.0~1.4	198		33300×2980×3340	33.4
FGZCS1.3-2.5×27	2.5	27	1.0~1.4	198		29560×3254×4117	/
FGZCS1.3-2×31	2.5	31	1.0~1.4	198		33560×3254×4117	/
Note: Parameter is for reference only, if any changes should follow the actual drawing
